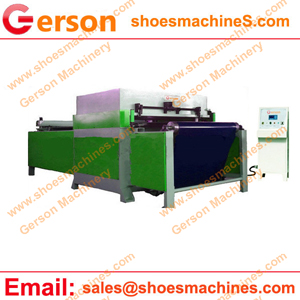

Automatic Roller Feeder Fixed Beam Die Cutting Machine

Gerson fixed beam/head die cutting machine with automatic roller feeder is good for the soft material in roll :Fabric,leather,paper,etc.,

Automatic Roller Feeder Fixed Beam Die Cutting Machine

Automatic Roller Feeder Fixed Beam Die Cutting Machine

1. The rolls form material to be fed through a set of powered rollers, with manual control or programmable increments.
2.The fixed beam press can be die cut for large area material and cutting dies/knifes.
3.There also can be die cutting one layers or several layers in rolls .
4.Custom build upon the production requirement ,such as the cutting table size ,cutting force etc.,
Model GRBC-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240mm
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500mm
1470×600,700,800,900,1000,1200, 1500mm
1600,1700,1800,2000,2200×600,700,800,900,1000,1200, 1500,1800mm,2200mm
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500KGs
1700 to 17500KGs
