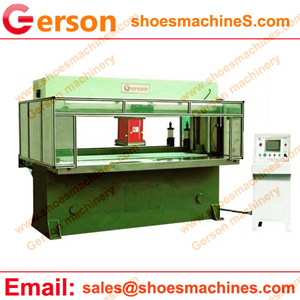

Eva Sole Sheet die Cutting Machine

Eva Sole Sheet die Cutting Machine is the die cutting or punch or stamping press machine for eva insole ,eva sole,eva foam sheet in sheet or roll format. this hydraulic die cutting press macine is also can PU sole , PVC sole ,leather sole for shoes,also shoes upper.

Eva Sole Sheet die Cutting Machine

1.The cutting board micro-movement device can guarantee the consumption of cutting board evenly .So that saving cost and reducing the consumption.


2.The Eva Sole Sheet four column die cutting machine adopts four-column guiding,double-crank balancing and hydraulic driving ,can ensure the speed and accuracy of die cutting of hydraulic machine.

3.All main connecting parts are equipped with central oil supply automatic lubricating device, so that reducing the abrasion to the minimum extent.


4.The hydraulic wave decorative foam die cutting machine has special cutting modes, the operation of it is very simple,prompt,and efficient.


5.The speed of cutting is very high ,can save a lot of working time,produce more high-quality products

Model GRB-25/30/40/50 GRB-60/80/100 GRB-120/150/200 GRB-300/400/500
Maximum cutting power(KN/TONS) 25/30/40/50Tons 60/80/100Tons 120/150/200Tons 300/400/500Tons
Cutting Table (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm) 250mm 250mm 250mm 250mm
Motor Power(KW/HP) 2.2-4KW 5.5-7.5KW 11KW 22KW
Machine Size(mm) 2200×2700×1300mm 2300×2800×1300mm 2500×3100×1500mm 2500×3100×1500mm
Weight(kg) 1600kg-3300kg 4300kg-7600kg 9500kg-13000kg 15000kg-33000kg
