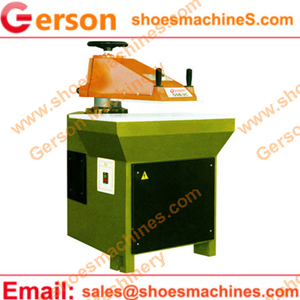

Hydraulic swing arm cutting clicking press with 25 tons pressure is the hydraulic clicker press manufacturer Gerson machinery Which is widely used in many industry or lab using .
- Gerson 25 ton hydraulic pressure to make sure enough for cutting out small or medium roll or sheets.
- The key to the Gerson success was the engineering design of the press and choice of materials .This clicking press can die cut out leather, rubber,plastic,foam, fabric, textile and chemical fibre
- Gerson also have Manual or autoamtic Travelling Head Cutting press. Manual Fixed Head/Beam Cutting press Receding Head Cutting Press.
- If you want to find good factory to support your production ,Gerson will be your good choice.
- Ann question ,welcome to contact Gerson sales department. The mail is Sales at shoesmachines dot com.
| Model | GSB,GR,GRA,GRB serials |
| Maximum Cutting Force | 8Tons-500Tons or More |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-300mm or more |
| Tension distance | 60-350mm or more |
| Cuttting table size | 650×330mm to 3000mm×2500mm |
| size | 660×780×1500mm to 2800×3200×1700mm |
| Motor Power | 0.75KW to 22Kw |
| Net Weight (N.W.) | 550Kgs to 18000kgs |
