50 ton cutting machine

Gerson die cutting machine 50 tons have the following models:ixed beam cutting machine 50 tons,movable beam cutting machine 50 tons and Traveling head cutting machine 50 tons

1.50 ton Beam cutting machine:

50 tons cutting machine

1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement . .

Model GRB(C)-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500

2.traveling head cutting machine 50 tons:

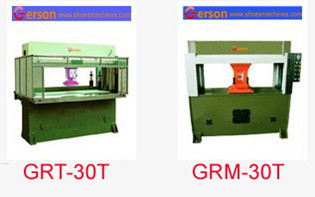

travelling head cutting machine for sale

50 tons traveling head cutting machine have two types:

One.manual traveling head cutting machine.

1.This type cutting machine feed by working hand and cutting by hand clicker .

2.The traveling head or trolley is light and  move easily by hand .

Two.Automatic traveling head cutting machine

1.This type cutting machine is automatic feeding and automatic die cutting by CNC control.

2. continuous  cutting operation of nonmetal roll materials or sheet materials.

3.The servo motor is adopted to control the horizontal movement of cutting head, And the multilayer materials are clamped by the cylinder for stepping feeding.

Model GRMA-25,30,40,50,60,80,100
Max Cutting Force 25,30,40,50,60,80,100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,color etc.,
