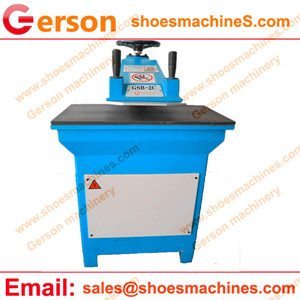

The machine is applicable to continuous cutting operation of nonmetal rolled materials of same specification and large batches.Especially for coat collar ,clothing collar and etc.
1.The position of the swing is adjusted by the upper handwheel on the machine blanking travel is controlled by the timer thus it is easy to obtain the best cutting position.Which and increase work efficiency and prolong the service life of the knife mould and backing board.
2.Coat buttons clicker press machine can be used for all kinds of the working environments,thanks to the hydraulic system operates under enclosed environment.
3.Safe and reliable for operating the clicker press machine with two hands.
4.We can do the machine depend on customers’ demands about cutting table size and pressure.
5.Customization for special specification and requirement is available.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
