Flashing Shoelace Movable Traveling Head Cutting Machine

The traveling head cutting machine is used to scissor up leather,cloth and other similar materials.It could make colorful flashing led shoelaces,light up shoelace,flashing shoelace and so on.

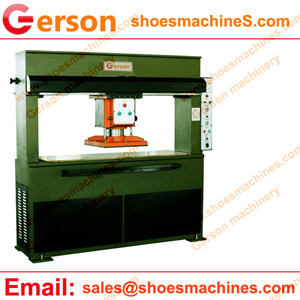

Flashing Shoelace Movable Head Cutting Machine
Flashing Shoelace Movable Head Cutting Machine

1.Time-lapse circuit controls lower limit of stroke with high precision to make high-quality products.
2.Same cutting depth in every cutting region can be ensured with double cylinder,four-column oriented,automatically balancing links.
3.When the cutting plate presses downward and touches die cutter,the movable head cutting machine will cut the materials automatically slowly to ensure no error between the top and bottom layers of cutting materials.
4.Specially setting structure makes adjustment of stroke be safe and accurate to coordinate with cutting force and cutting height.
5.The special dimension of product can be customized.

Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
