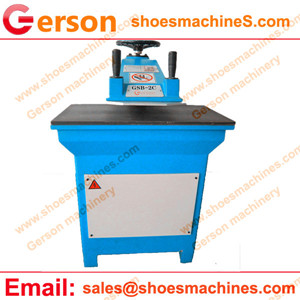

PVC Blister hydraulic swing arm die cutting machine

The PVC Blister hydraulic swing arm  cutting machine is widely applicable to cutting of various nonmetal materials by die cutter.

PVC Blister hydraulic swing arm die cutting machine
PVC Blister hydraulic swing arm die cutting machine

1.Simple and efficient to set the cutting point.
2.You need to use two hands to operate the die cutting machine,safe and reliable.
3.Adjust the position of swing arm by the upper handwheel on the die cutting machine blanking travel is controlled by the timer,thus it is more simple to get the best cutting position.So that increasing work efficiency and prolonging its using life.
4.Easy to operate PVC Blister hydraulic swing arm die cutting machine,because it adopts freely rotay swing arm.
5.We will meet the customer’s needs, the particular specifications can be customized.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
