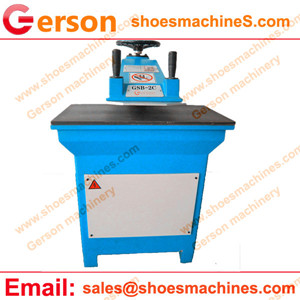

Cuff Hydraulic Swing Arm Die Cutting Machine

The die cutting machine is mainly suitable for cutting various of fabric.Such as Non Woven,Nibp Cuff,Knitting Fabric Cuff and etc.

Cuff Hydraulic Swing Arm Die Cutting Machine
Cuff Hydraulic Swing Arm Die Cutting Machine

1.Operation with double hands , it is more safe and reliable.
2.The automatic lubricating system can reduce wear of the cuff die cutting machine.
3.Low consumption , high speed and low cost.
4.High quality seamless steel tubes are adopted and processed into pillars, which are supported by top and bottom holes, to guarantee the flexible rotation and good reliability of upper beating board.
5.People can adjust height of swing arm by handle, it is very simple and convenient.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
