Swing beam cutting machine

The Gerson machinery is widely applicable to cutting of various nonmetal materials by die cutter.

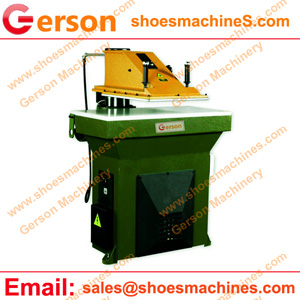

Swing beam cutting machine
Swing beam cutting machine

1.It is Easy to operation,the rocker is very quick and easy.
2.The oil way system specially design can conveniently adjust the rocker height.No adjustment is needed after the height of die cutter is changed.
3.Rocker height can be adjusted to facilitate a variety of cutting die operation.
4.Bi-directional oil,automatic lubrication,the whole stable and reliable,low wear and tear.
5.Operator to the lowest degree of fatigue.
Model Number GSB,GR,GRA serials
Cutting area 650×330mm,800,900×430mm,1000,1200×500,600mm
Arm width 370*275mm,500mm,600mm
M.C.F. 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Power 2HP
Stroke 5-95mm
G.W. 550Kgs to 1200kgs
N.W. 500kg to 1100kgs
Color custom built
Dimensions 650*750*1500mm ,more
Packing size 800*850*1700mm ,more
Voltage three/single phase,380v/220v
Hydraulic oil 46# 48# 68#
Function Die cutting
Automatic Grade Semi-Automatic
Machine Die cutting
Driven Type Hydraulic
Type die cutting machine
Condition New
