Kiss die Cutting Machine For LCD Film and protective film

The kis cutting is die cutting process of a face material of a laminated substrate without cutting the support material .For example: kiss cutting a sticker lLCD Film and protective film is that die cutting the top layer of a material without cutting through an attached material. – leaving the film on the backing sheet ready to be peeled off.

The process got its name because the kis cuttig knife or the steel rule die cuts through the top layer of material, but only “kisses” the backing material without cutting it.

Gerson kiss cutting machine  can be used for many flaky materials: PC/P.P/PET/PVC  ,protective film, LCD film, luminescent chip, touch panel, flexibleprinted circuit boards, insulation film,label stickers, foam, automotive upholstery, nameplates, copper foil, aluminium foil, rubber,
and other electronic materials.

Feature:

1.This die cutting machine specially designed lower cutting and positioning mechanism.The The precision is ±0.02mm. Fine tunning precision is 0.01mm.
2.Both complete cutting and half cutting are available.
3.The solid machine body structure of double-crank connecting rod balancing and four-column guiding and block-dead body fine-adjustment mechanism, which can guarantee the speed and accuracy of die cutting machine.
4.Precise feeding and position alignment has a precision of ±0.03mm.
5.Protective protective device can protect can ensure the safety of the operator.
6.Special custom design or specifications welcome.

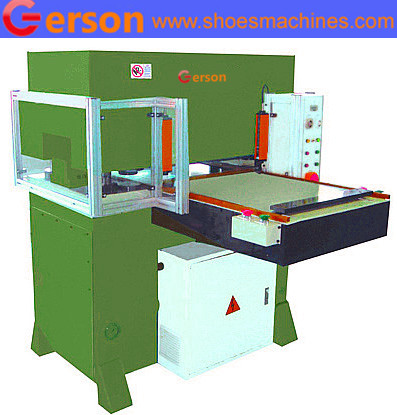

Kiss die cutting machine

Model GRS-40,60,80,100
Max cutting force(T) 40T,60T,80T,100T
Stroke adjustment 50-200
Cutting area(mm) 600×600
1000×600,700,800
1600×600,700,800
Motor power 3KW,5.5KW,7.5KW,11KW
Machine Net weight (KG) 2200
3100
4000-500
