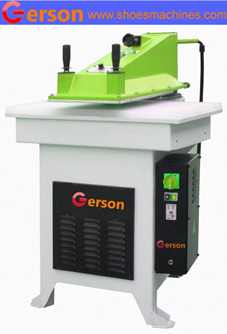

Shirt Collar Fusing Interlining hydraulic cutting machine

Shirt Collar Fusing Interlining hydraulic cutting machine is the special die cutting machine to make cutting the material such as 100% Cotton Woven Fusible Interlining,Film Laminated Interlinings For Arabia Wear ,100% Polyester Twill Weave Woven Interlining etc.,

Shirt Collar Fusing Interlining hydraulic cutting machine
Shirt Collar Fusing Interlining hydraulic cutting machine

1.Without any adjustment(pressure conteol).It automatic stroke end setting-up to use outting-knives of different heights.
2.The hydraulic cutting machine can use a smaller knife mold to cut to break normally.Because of use circuit board to adjust the pressure to of oneself biggest, shake arm to descend to press time is adjusted by the electric potentiall machine.
3.The operation of the machine to ensure safety for only the hands press a switch can carry out to shake arm to descend.

Model

GR-20C

GR-27C

GR-27C/1

GR-27C/2

Max. cutting power

20 ton

27 ton

 27 ton

27 ton

Maximum stroke(mm)

80

100

100

 100

Cutting table(mm)

 900 x 430

 900 x 450

1000 x 500

1200 x 500

Arm width(mm)

 370

370

500/600

500/600

Motor power

HP. 1

HP. 1,5

HP. 1,5

HP. 1,5

Net weight with oil

Kg. 570

Kg. 780

Kg. 840

Kg. 910

Sizes about (mm)

 1000 x 900
h. 935

900 x 1000
h. 1370

1000 x 1000
h. 1370

 1200 x 1030
h. 1370

Sizes sea packing(mm)

1050 x 1085
h. 1500

1050 x 1150
h. 1570

1150 x 1150
h. 1570

1350 x 1180
h. 1570

Gross weight and volume with sea packing

Kg. 640
m1,7

Kg. 900
m1,90

Kg. 980
m2,10

Kg. 1055
m2,50
