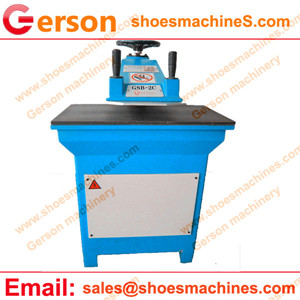

Nonwoven bedsheet rocker cutting Press

Nonwoven bedsheet rocker cutting machine is suitable for the use of small die cutter machine components.

Nonwoven bedsheet rocker cutting Press
Nonwoven bedsheet rocker cutting Press

1.The operation of the machine to ensure safety with double-hands.
2.The use of time control makes it convient to define the setting sizes of cutter depth.
3.Small motor power ensure low power consumption.
4.Any requirements can be added.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
