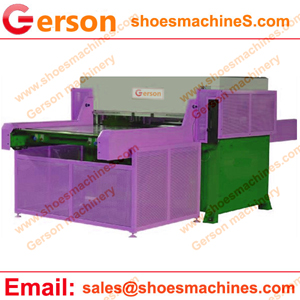

Ladies Camisole Automatic Hydraulic four-column Die Press

 Beam Press inter to Fashion Clothing Camisole,Printed Camisole,Satin Camisole and so on.

Ladies Camisole Automatic Hydraulic four-column Die Press
Ladies Camisole Automatic Hydraulic four-column Die Press

1.With special setting mechanism, and equipped with die cutter and cutting depth setting,
the travel adjustment is simple and accurate.
2.Single-side or double-side automatic feeding system can be allocated to enhance
the production efficiency of machine twice or thrice.
3.The conveying part adopts PLC control. The materials are driven by the servo motor and
input from one side of machine, and after die cutting, output from the other side,
which can guarantee accurate feeding and stable operation.
The feeding length can be adjusted conveniently through touch screen.
4.Dual oil pumps, and precise 4-column automatic equilibrium joint structure, ensure the equi
5.Ladies Camisole hydraulic die cutting machine of special specification can be csutomized.
Model Maximum cutting power cutting table size(mm) Max.stroke(mm) GRBA-25/30/40/50 25/30/40/50 (1250-2500)*(500-1500)mm 250mm
GRBA-60/80/100 60/80/100 (1250-2500)*(500-1500)mm 250mm
GRBA-120/150/200 20/150/200 (1250-2500)*(500-1500)mm 250mm
GRBA-300/400/500 300/400/500 (1250-2500)*(500-1500)mm 250mm
Motor power(KW) machine size(mm) weight(kg) 2.2-5.5kw 2200*2700*1300mm or more 2300-3600kg
5.5-7.5kw 2300*2800*1300mm or more 4800-8600kg
11kw 2500*3100*1500mm or more 9500-15000kg
22kw 2500*3100*1500mm or more 18000-38000kg
