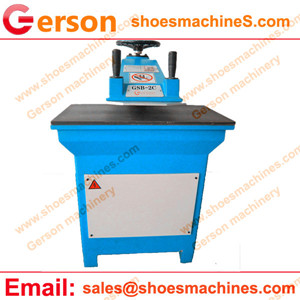

Porcelain Floor Tiles Automatic Moving Head Die Cutting Machine

The die cutting machine is appropriate for cutting of various nonmetal materials by die cutter.

Porcelain Floor Tiles Automatic Moving Head Die Cutting Machine
Porcelain Floor Tiles Automatic Moving Head Die Cutting Machine

1.High precision of the production.
2.Owing to double cylinder and four-column oriented, the cutting depth in every cutting region is same.
3.When the cutting machine plate presses downward and touches die cutter,the cutting machine will cutting the materials automatically slowly to guarantee no error between the top and bottom layers of the materials.
4.With especially setting structure, it makes adjustment of stroke safe and accurate coordinating with cutting force and cutting height.
5.afe, two-hand trip operation.
6.We will make the special dimension of products according your request.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
