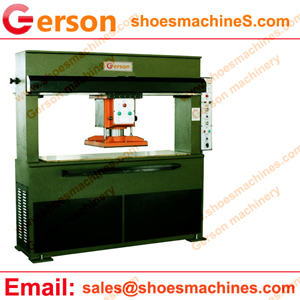

This cutting machine is applying to utilize the forming cutter to punch and cut the single-ayer or multi-ayer leather, rubber, plastic, textile, and chemical fiber.
1.The hydraulic system specially designed is featured by low noise and low oil consumption.
2.Several types of cutting table size can be your choice.
3.Two hand tripping action, ensures complete operator safety.
4.the precise lead screw driving unit is adopted for accurate movement and positioning and stable operation.
5.Products of special specifications can be customized.
Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
