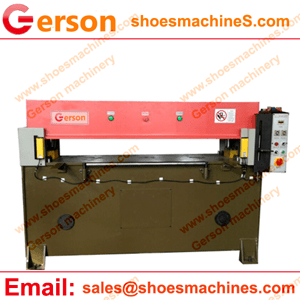

Cotton short oversleeve hydraulic Four Column Cutting Machine

The die cutting machine is mainly suitable for cutting various of fabric.

Cotton short oversleeve hydraulic Four Column Cutting Machine
Cotton short oversleeve hydraulic Four Column Cutting Machine

1.Setting of the knife mold is rapid, accurate and easy-to-learn.
2.In order to guarantee operators’ safety,you should use two hands operate the die cutting machine.
3.Low noise and low consumption,the hydraulic automatic lubricating system is adopted to reduce wear.
4.Value for money wit no hidden costs.
5.Microcomputer controls this machine to make the operation be simple,prompt and accurate.
6.Accept your design on specification.
Model GRB-25/30/40/50 GRB-60/80/100 GRB-120/150/200 GRB-300/400/500
Maximum cutting power(KN/TONS) 25/30/40/50Tons 60/80/100Tons 120/150/200Tons 300/400/500Tons
Cutting Table (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm) 250mm 250mm 250mm 250mm
Motor Power(KW/HP) 2.2-4KW 5.5-7.5KW 11KW 22KW
Machine Size(mm) 2200×2700×1300mm 2300×2800×1300mm 2500×3100×1500mm 2500×3100×1500mm
Weight(kg) 1600kg-3300kg 4300kg-7600kg 9500kg-13000kg 15000kg-33000kg
