The cutting machine is widely applicable for cutting of various nonmetal materials by die cutter.

1.The inertial energy of flying wheel to make the energy consumption is low and the operation stable.
2.Flexible rotation of swing arm for convenient operation and material selection.

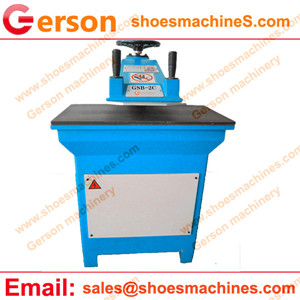

3.The swing arm clicker press is the workhorse for many die cutting applications and also a very capable entrylevel machine.
4.The hydraulic system operates under enclosed environment,so, this machine can be used for all kinds of the working environments.
5.The machine can be made according to your needs.your request.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
