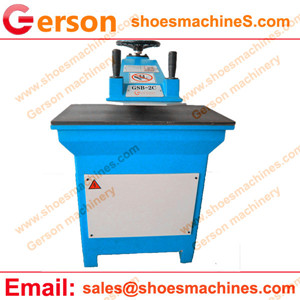

Leather Shank Buttons clicker press machine fits for cutting single or multi layer nonmental materials.

1.The swing arm die cutting machine is a very capable entrylevel machine, it is the workhorse for many die cutting applications..
2.Both hands to operate the switch to guarantee the safety of operators.
3.Rotation of swing arm is flexible, and operation and materials selection is convenient.
4.The use of time control allows for simple and convenient setting of cutter depth.
5.Use fly wheel inertia stored energy to save energy.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
