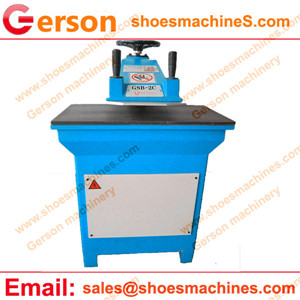

Fashion Dress hydraulic die cutting machine

The hydraulic die cutting machine is widely applicable to cutting of various nonmetal materials by die cutter.

Fashion Dress hydraulic die cutting machine
Fashion Dress hydraulic die cutting machine

1.The machine can guarantee the precision of punching of different kinds of materials,and the cutting depth can be regulated precisely.
2.The height of swing arm can be adjusted casually so as to be converient for the operation of all kind of cutting knife.
3.The swing arm of this machine is simple and quick,at the same time,the machine can be operated easily.
4.The whole machine is stable and reliable with bidirectional oil passage and automatic lubrication,at the same time can reduce the wear to a minium.
5.Products of special specifications can be specially designed and manufactured according to customer requirements.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
