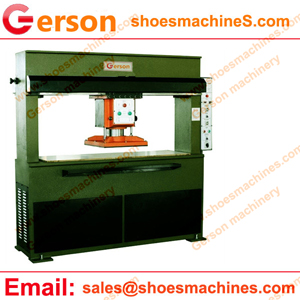

The travelling head cutting machine is used to scissor up leather,cloth and other similar materials.
1.High quality of production and easy to operate.
2.Same cutting depth in every cutting region can be ensured with double cylinder and four-column oriented system.
3.When the cutting plate presses downward and touches die cutter,the movable head cutting machine will cut the materials automatically slowly to ensure no error between the top and bottom layers of cutting materials.
4.Specially setting structure designed for accuracy and high output.
5.The special specification of product can be customized.
Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
