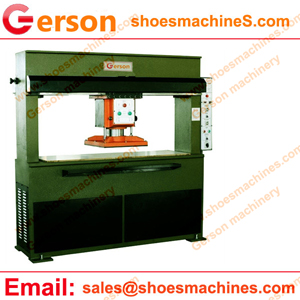

Filter Fabric Hydraulic Traveling Head Cutting Machine

It is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber and other non-mental materials.

Filter Fabric Hydraulic Traveling Head Cutting Machine
Filter Fabric Hydraulic Traveling Head Cutting Machine

1.Gantry frame structure made of profile steel is adopted, with high intensity andwithout deformation.
2.The travelling head cutting machine can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3.The hydraulic system specially designed is featured by low noise and low oil consumption.
4.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5.The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6.Differential oil way is adopted to allow rapid and convenient cutting.
Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
