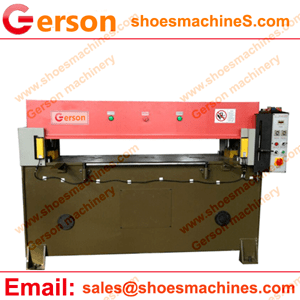

Hydraulic precision craft Kits beam cutting machine

The receding beam press machine is suitable for forming knife die for nonmetal materials such as leather,paper,textile and rubber etc by die cutter.

 Hydraulic precision craft Kits beam cutting machine

Hydraulic precision craft Kits beam cutting machine

1.With special setting mechanism, and equipped with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
2.Adopt double oil cylinder, four-column, precise double-crank connecting rod mechanism.
3.Hydraulic precision craft Kits beam cutting machine can realize fast cutting operation and maximum producytivity.
4.Operator has the lowest degree of fatigue.
5.External motor and oil pump enable good ventilating and cooling conditions , safety operation and prolonged service life.
Model GRB-25/30/40/50 GRB-60/80/100 GRB-120/150/200 GRB-300/400/500
Maximum cutting power(KN/TONS) 25/30/40/50Tons 60/80/100Tons 120/150/200Tons 300/400/500Tons
Cutting Table (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm) 250mm 250mm 250mm 250mm
Motor Power(KW/HP) 2.2-4KW 5.5-7.5KW 11KW 22KW
Machine Size(mm) 2200×2700×1300mm 2300×2800×1300mm 2500×3100×1500mm 2500×3100×1500mm
Weight(kg) 1600kg-3300kg 4300kg-7600kg 9500kg-13000kg 15000kg-33000kg
