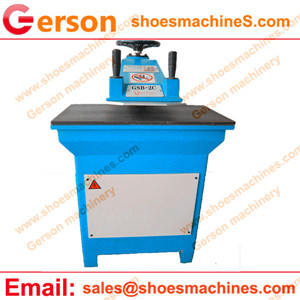

The swing arm cutting machine is used to cutting of various nonmetal materials by die cutter,such as small-sized knife mould, Loyalty cards,Key cards,I.D. cards,Gift cards and etc.
1.Operators can adjust the rocker height to facilitate a variety of cutting die operations.
2.Loyalty cards swing arm die cutting machine has special cutting modes which can reduce consumption and save raw materials.
3.Operation of loyalty cards swing arm die cutting machine with both hands,safe and reliable.
4.Loyalty cards swing arm die cutting machine has bi-directional oil and automatic lubrication to ensure the whole machine be stable and reliable,has low wear and tear.
5.Loyalty cards swing arm die cutting machine uses time control to be simple and convenient for setting of cutter depth.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
