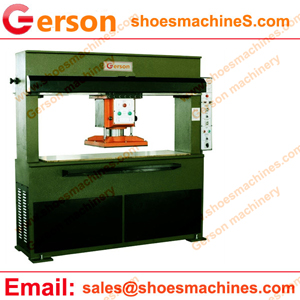

Chiffon Fabric Hydraulic Cutting Machine

This machine is mainly suitable for cutting materials like plastic,paper cutting out.

 Chiffon Fabric Hydraulic Cutting Machine

Chiffon Fabric Hydraulic Cutting Machine

1.The chiffon fabric traveling head hydraulic cutting machine has a special cutting mode, can save labor and reduce raw materials.
2.The die cutting machine is controlled by timer , with accurate and stable operation.
3.Using the cutting machine can save a lot of time and labor ,improve work efficiency ,ensure the products are high-quality.
4.Because the hydraulic cutting machine’s punch head can automatically move horizontally , it can have the good operating visual field and safe and reliable operation.
5.We will produce cutting machine according to your request.
Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
