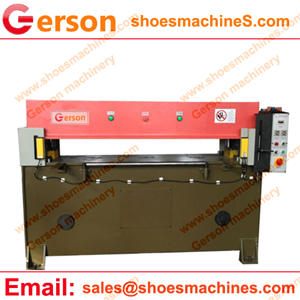

Rubber Floor Hydraulic Receding Head Press Machine

The cutting machine is widely applicable for cutting many kinds of floor material by die cutter.

 Rubber Floor Hydraulic Receding Head Press Machine

Rubber Floor Hydraulic Receding Head Press Machine

1.Equipped with automatic adjusting stroke system ,it needn’t set the stroke by muanul . it makes machine can cut different thickness floor material .
2.Equipped with central oil supply automatic lubrication systerm , it prolongs the machine’s use life .
3.Operation with double hands,safe and reliable.
4.Unique hydraulic pressure ,very high speed,low noise,very low oil temperature.
5.It is easy to learn and operate,and save much time and labor resources.
Model GRB-25/30/40/50 GRB-60/80/100 GRB-120/150/200 GRB-300/400/500
Maximum cutting power(KN/TONS) 25/30/40/50Tons 60/80/100Tons 120/150/200Tons 300/400/500Tons
Cutting Table (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm) 250mm 250mm 250mm 250mm
Motor Power(KW/HP) 2.2-4KW 5.5-7.5KW 11KW 22KW
Machine Size(mm) 2200×2700×1300mm 2300×2800×1300mm 2500×3100×1500mm 2500×3100×1500mm
Weight(kg) 1600kg-3300kg 4300kg-7600kg 9500kg-13000kg 15000kg-33000kg
