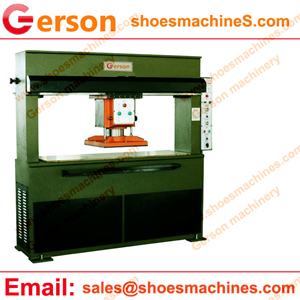

The machine is applicable to die cutting operation of various nonmetal slices materials by die cutter.
1.With the cutting precision balance degree,can reduce the loss of die cutter cutting plate machine. Because the cutting edge has a better effect,more to reduce the consumption of the cutting board.
2.The cake model traveling head cutting machine adopts the differential oil way ,so that allowing rapid and convenient cutting.
3.Thress operation modes.Such as manual,semi-automatic,fully automatic.
4.Equipped with automatic self-lubricating system can reduce wear and extend the service life of the cake model traveling head traveling head cutting machine.
5.Large area of pressing board of cutting makes it possible to cut large-sized materials.
Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
