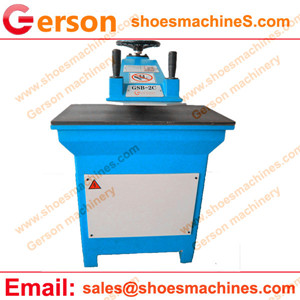

The machine is widely applicable to cutting of various nonmetal materials by die cutter.Such as Cars Polishing With Sponge,Washing Sponge,Waxing Sponge and so on.
1.The inertial energy of flying wheel is adopted ,So that reducing energy consumption and keep the operation stable.
2.The waxing sponge swing arm hydraulic die cutting machine is a very capable entrylevel machine , operators need operate it with double hands , and it is very safe and reliable.
3.The use of time control can guarantee the accurate setting of cutter depth ,and the operation stable,simple,convenient.
4.Using the handle to adjust height of swing arm , it is simple ,prompt and convenient.
5.We could make the increased insoles hydraulic swing arm cutting machine according to the customers’ request.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
