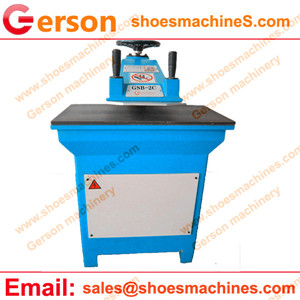

This machine is mainly suitable for cutting materials like plastic,paper cutting out. Such as Kraft Paper Envelope,Adhensive Paper Envelope,Wallet Envelope and etc.
1.Because the lower limit of stroke is controlled by a time-lapse circuit with high precision, the quality of envelope is good.
2.The high quality seamless steel tubes is processed into pillars,supported by top and bottom holes.So that ensure the flexible rotation and good reliability of upper beating board.
3.Operating the envelope hydraulic swing arm cutting machine with double hands,can ensure the safe of the operators.
4.Through the hands wheel of envelope to adjust the cutting travel,thus we will get the optimal cutting position easily,improving the working efficiency,prolonging the service life of the die cutter and cutting board.
5.Machines of specifications can be available on request.
Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
