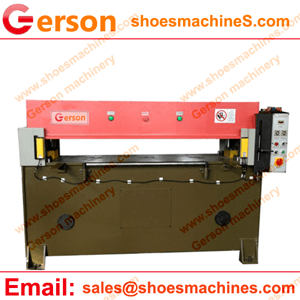

Mop Head Hydraulic Die Cutting Machine

The die cutting machine is mainly suitable for cutting various of fabric.It could make such products as Non-woven Fabrics Mops,Microfiber Mop Fabric, Needle Punched Non Woven Felt and so on.

Mop Head Hydraulic Die Cutting Machine
Mop Head Hydraulic Die Cutting Machine

1.Easy to learn how to set of the knife mold quickly.
2.Hands operate the mop head hydraulic traveling head die cutting machine can ensure safety of the operators.
3.The hydraulic system specially designed is featured by low noise and low oil consumption.
4.Setting of the cutting position is simple and efficient.
5.Other features can be added on request,making the mop head hydraulic traveling head die cutting machine according to your demands.
Model GRB-25/30/40/50 GRB-60/80/100 GRB-120/150/200 GRB-300/400/500
Maximum cutting power(KN/TONS) 25/30/40/50Tons 60/80/100Tons 120/150/200Tons 300/400/500Tons
Cutting Table (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm) 250mm 250mm 250mm 250mm
Motor Power(KW/HP) 2.2-4KW 5.5-7.5KW 11KW 22KW
Machine Size(mm) 2200×2700×1300mm 2300×2800×1300mm 2500×3100×1500mm 2500×3100×1500mm
Weight(kg) 1600kg-3300kg 4300kg-7600kg 9500kg-13000kg 15000kg-33000kg
