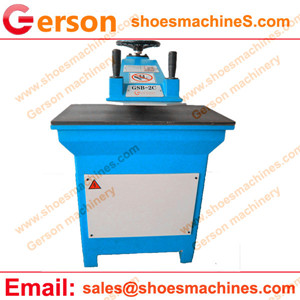

Plastic Belt Hydraulic Die Cutting Press

The die cutting machine is widely applicable to cutting of various nonmetal materials by die cutter

Plastic Belt Hydraulic Die Cutting Press
Plastic Belt Hydraulic Die Cutting Press

1.The Plastic belt hydraulic die cutting machine with flexible arm can cut multi-faceted material .
2.High working efficiency and long service life of the die cutting machine.
3.Swing arm can move side automatically promise prefect vision field and make it convient for operator to pick up finished materials.
4.From smallest 8 tons to the largest 18 tons or more
5.The special specification of Plastic belt hydraulic die cutting press can be customized.

Model GSB-8,GSB-10 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS) 78.5KN(8TONS), 98KN(10TONS) 10ton to 18 tons
Cutting Table 650×350mm 800×400mm,900×430,450mm
Swaying arm width(mm) 350mm 350mm
Max.Stroke(mm) 75mm 75mm
Motor Power(KW/HP) 0.75KW/1HP 0.75KW/1.5HP
Machine Dumensions(mm) 600×800×1500mm 900×900×1400mm
Packing Size(mm) 1050×1050×1500mm 1350×1200×1550mm
Net Weight(No oil)(Kg) 580kg 750-910kg
Gross Weight(Kg) 650kg 800-950kg
