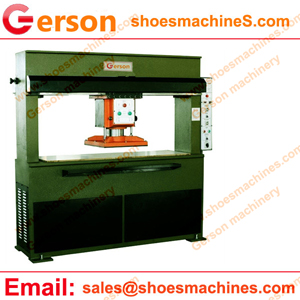

Low consumption automatic moving head cutting machine for canvas shoes

The cutting  machine is widely applicable to cutting of various nonmetal materials by die cutter especially in shoes production.

Low consumption automatic moving head cutting machine for canvas shoes
Low consumption automatic moving head cutting machine for canvas shoes

1.Operate this machine with double hands,safe and reliable.
2.Large area of pressing board of cutting makes it possible to cut large-sized materials.
3.The hydraulic cylinder designed to control both the up and down movement of the head and it provide more accurate control of the cutting stroke.
4.Low noise and low oil consumption make a comfortable environment.
5.Products of special specifications can be built according to customer requirements.

Model GRM-25/30/40/50/80/100 GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS) 25/30/40/50/80/100 Tons 25/30/40/50/80/100 Tons
Cutting Table (1600-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Traveling head size(mm) (500mm-1500mm)×(500-1500mm) (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm) 150mm 150mm
Motor Power(KW/HP) 2.2-5.5kw 2.2-5.5kw
Machine Dumensions(mm) 2200×620×2000mm or more 2200×620×2000mm or more
Weight(kg) 2300kg 2300kg
